In the sign and graphics industry, laminate vinyl films protect printed graphics and enhance their appearance. Different types of laminate films serve various functions depending on the application, environment, and desired finish. Here are the key differences:
Film Type (Material Base)
- Cast Laminate – Made from cast vinyl, highly conformable, durable, and resistant to shrinking. Best for vehicle wraps, textured surfaces, and long-term applications.
- Calendered Laminate – Made from calendered vinyl, thicker, less conformable, and more prone to shrinkage. Best for flat or slightly curved surfaces, and short- to mid-term signage.
Clarity
- Standard Laminate – Slight haze–noticeable over glass or clear substrates. Used for everyday signage, decals, and wall and floor graphics.

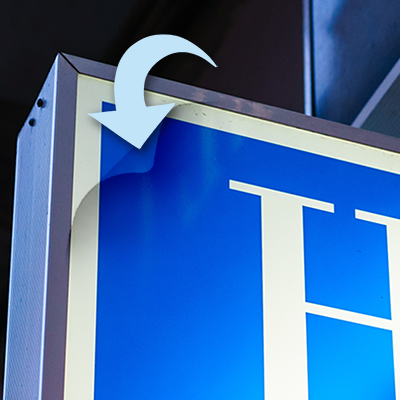

- Optically Clear Laminate – Crystal clear–virtually invisible over glass/acrylic. Used for storefront glass, window perf, and see-through displays.
- UV-Protective Laminate – Varies–often clear, but not consistently optically rated. Used for outdoor signage, vehicle wraps, and sun-exposed installs.
- Non-UV / Short-Term Laminate – May have haze or tint. Used for temporary indoor or outdoor promotional campaigns.
- Water-Based Adhesive Laminate – Similar to standard laminate; clarity depends on the resin used. Used for eco-conscious graphics, short- to mid-term use.
Finish
- Gloss – High shine, enhances colors and contrast. Best for eye-catching signage, retail, and vehicle graphics.
- Matte – Non-reflective, reduces glare, and has a more subtle look. Best for indoor displays, reading distance signage, and wall graphics.
- Luster/Satin – Semi-gloss, a balance between gloss and matte. Best for general-purpose graphics, a natural look with minimal glare.
- Textured – Specialty finishes. Best for floor graphics for slip resistance.
Thickness
- Typically, it ranges from 1.5 mil to 3 mil.
- Thicker laminates offer more durability and protection, especially for high-abuse environments (e.g., vehicle wraps, floor graphics).
- Thinner laminates are more conformable and better for complex curves or indoor use.
UV Protection
- Many laminates provide UV inhibitors to extend the life of the printed graphic.
- Essential for outdoor use, where exposure to sunlight would otherwise cause fading.
Durability and Expected Lifespan
- Cast – 5-10 years (or more with premium quality).
- Calendered – 3-6 years, depending on the environment.
- Specialty – Varies by texture and finish.
Recommended Laminates Based on Application
- Vehicle Wraps – Cast laminate with gloss or matte finish.
- Floor Graphics – Textured laminate for slip resistance.
- Walls – Matte or satin finish laminate for glare control.
- Outdoor Signage – UV-resistant cast or calendered laminate, depending on budget.
- POP Displays – Gloss calendered laminate for indoor appeal.
Compatibility
- Always match laminate type with the print vinyl (cast laminate with cast vinyl, etc.) to avoid issues like shrinking or delamination.
- Check printer compatibility—some laminates are designed for eco-solvent, latex, or UV-curable inks.
Choosing the right laminate vinyl film involves balancing durability, visual impact, budget, and application surface. Cast laminates offer the best performance for high-end or complex applications. For cost-sensitive, flat-surface signage, calendered laminates are a solid choice. The right finish also impacts how the graphics are perceived under different lighting conditions.
